Product Type

Microwave Presence Sensor (Breathing Detection Sensor)

Product Description

The LEYDEN LS-LDN753PS is an advanced 5.8GHz Microwave Presence Sensor designed to detect human movement, slight body motion, and breathing signals for intelligent lighting automation. Unlike conventional PIR motion sensors, this presence sensor continues detecting occupants even when they are sitting, reading, typing, or performing slight movements, helping prevent lights from turning OFF unnecessarily.

Its 360° ceiling-mounted microwave radar technology provides reliable occupancy detection for homes, offices, meeting rooms, washrooms, hospitals, classrooms, hotels, libraries, and commercial buildings.

The built-in daylight sensor automatically controls lighting according to ambient light levels, reducing electricity consumption while improving user comfort.

Amazon Bullet Points

✅ Advanced Human Presence Detection

Uses 5.8GHz microwave radar technology capable of detecting movement, slight body motion, and breathing signals, making it more effective than traditional PIR sensors for occupancy detection.

✅ Intelligent Energy Saving

Automatically switches lights ON when presence is detected and OFF after the selected delay time, helping reduce unnecessary electricity consumption.

✅ 360° Wide Detection Coverage

Provides full 360° ceiling detection with adjustable sensing area for reliable coverage in residential and commercial applications.

✅ Adjustable Operating Parameters

Customize detection area, hold time, ambient daylight threshold, and indicator light using built-in DIP switches to suit different installation environments.

✅ Wide Range Applications

Ideal for offices, conference rooms, corridors, staircases, washrooms, hospitals, hotels, classrooms, parking areas, smart homes, warehouses, libraries, and commercial buildings.

Key Features

• 5.8GHz Microwave Radar Technology
• Human Presence Detection
• Slight Motion Detection
• Breathing Detection
• 360° Detection Angle
• Automatic Lighting Control
• Adjustable Detection Area
• Adjustable Hold Time
• Adjustable Daylight Sensor
• Built-in Ambient Light Sensor
• Energy Saving Operation
• Ceiling Flush Mount
• Reliable Indoor Occupancy Detection
• Maintenance Free
• Compact Design
• Low Power Consumption

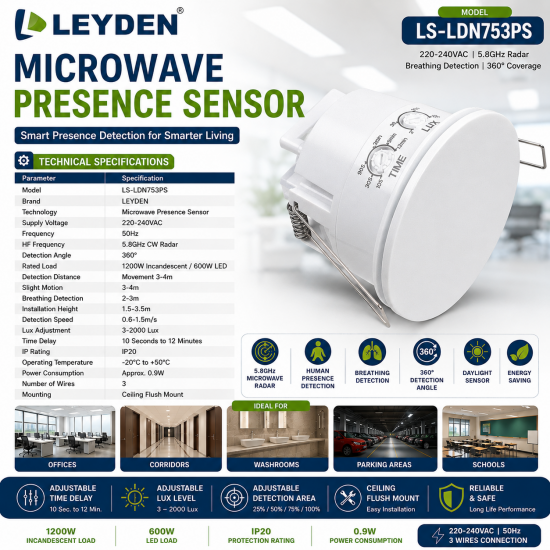

Technical Specifications

These specifications are shown in the uploaded technical datasheet.

Package Includes

• 1 × LEYDEN LS-LDN753PS Presence Sensor
• Installation Guide

Applications

• Smart Homes
• Bedrooms
• Living Rooms
• Offices
• Conference Rooms
• Meeting Rooms
• Libraries
• Hospitals
• Schools
• Colleges
• Hotels
• Washrooms
• Corridors
• Staircases
• Parking Areas
• Warehouses
• Retail Stores
• Reception Areas
• Commercial Buildings

Installation Instructions

1. Switch OFF the main power supply.
2. Cut a ceiling hole of approximately 65–70 mm.
3. Open the terminal cover.
4. Connect Live, Neutral, and Load according to the wiring diagram.
5. Adjust DIP switches if required.
6. Secure the wiring.
7. Push the spring clips inward.
8. Insert the sensor into the ceiling opening.
9. Restore power.
10. Allow approximately 60 seconds for sensor initialization before testing. These installation and initialization steps are shown in the datasheet.

Operating Instructions

First Power ON

• Sensor enters self-test mode.
• Initialization takes approximately 60 seconds.
• During initialization, external motion is ignored.
• After initialization, normal detection begins.

Detection Operation

• Human walking → Light turns ON.
• Slight movement while sitting → Light remains ON.
• Breathing detection → Occupancy maintained.
• No presence → Light turns OFF after the selected delay.

DIP Switch Settings

Detection Area

• 100%
• 75%
• 50%
• 25%

Hold Time

• 5 Seconds
• 30 Seconds
• 1 Minute
• 3 Minutes
• 5 Minutes
• 10 Minutes
• 20 Minutes
• 30 Minutes

Daylight Sensor

• 5 Lux
• 25 Lux
• 50 Lux
• Disabled

Indicator

• ON
• OFF

These adjustable settings are provided in the product datasheet.

Safety Instructions

• Installation must be carried out only by a qualified electrician.
• Disconnect the mains power before installation, wiring, maintenance, or changing DIP switch settings.
• Use only with 220–240VAC, 50Hz power supply.
• Do not exceed the rated load of 1200W incandescent or 600W LED.
• Indoor use only (IP20).
• Keep away from water, rain, moisture, steam, and corrosive environments.
• Do not install near high-temperature equipment or open flames.
• Ensure all wiring connections are secure before energizing.
• Do not modify or disassemble the sensor.
• Replace immediately if the housing is damaged.
• Keep out of reach of children.
• Use only within the specified operating temperature range.
• Turn OFF power before cleaning.
• Clean only with a dry, soft cloth.

Important Installation Precautions

• Install away from large metal objects where possible.
• Avoid installation directly behind large glass panels when unintended detection outside the room may occur.
• Avoid installation near continuously vibrating equipment such as ceiling fans or heavy machinery.
• Do not expose the daylight sensor to artificial light sources that may affect ambient light measurement.
• Select an appropriate detection range to minimize false triggering from adjacent areas.
• Detection performance depends on installation height, object movement, surrounding environment, and room layout. These precautions are reflected in the application notes provided in the datasheet.

Warranty

• 1-Year Limited Manufacturer Warranty
• Covers manufacturing defects only.
• Warranty does not cover incorrect installation, misuse, water damage, physical damage, overload, short circuit, unauthorized modification, or accidental damage.
