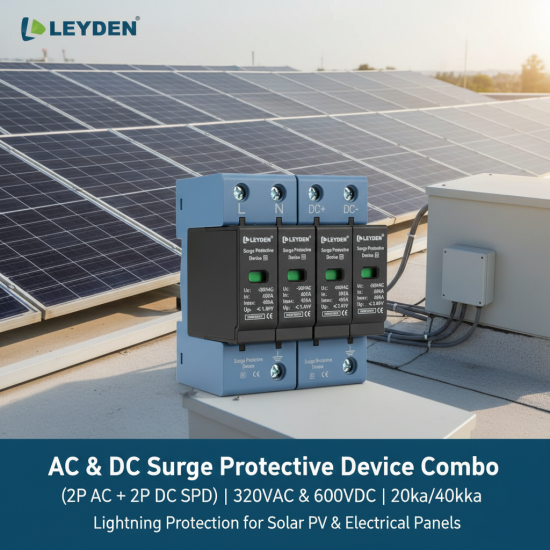

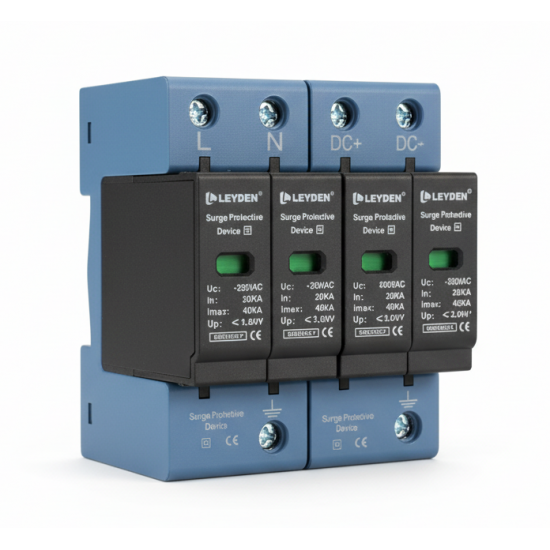

LEYDEN® SPDACDC-2P AC & DC Surge Protective Device Combo (2P AC + 2P DC SPD) | 320VAC & 600VDC | 20kA/40kA | DIN Rail Lightning Protection for Solar PV & Electrical Panels

Key Features (Bullet Points)

• ⚡ Complete AC + DC Protection: Combo pack includes 2-Pole AC SPD (L-N) and 2-Pole DC SPD (DC+ / DC-) for full system protection.
• ???? Ideal for Solar Systems: Designed for solar PV installations, protecting both AC output and DC input sides of inverters.
• ⚙️ High Surge Capacity: Supports 20kA nominal (In) and up to 40kA maximum (Imax) discharge current for strong lightning protection.
• ????️ Dual Voltage Compatibility:
  • AC SPD: Up to 320VAC
  • DC SPD: Up to 600VDC
• ???? Visual Status Indicators: Built-in green indicator windows for quick operational status monitoring.

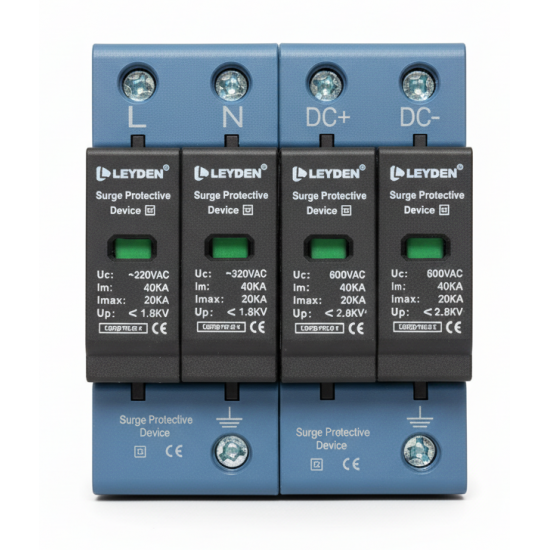

• ???? Clearly Marked Terminals:
  • AC: L (Line) / N (Neutral)
  • DC: DC+ / DC- for error-free installation

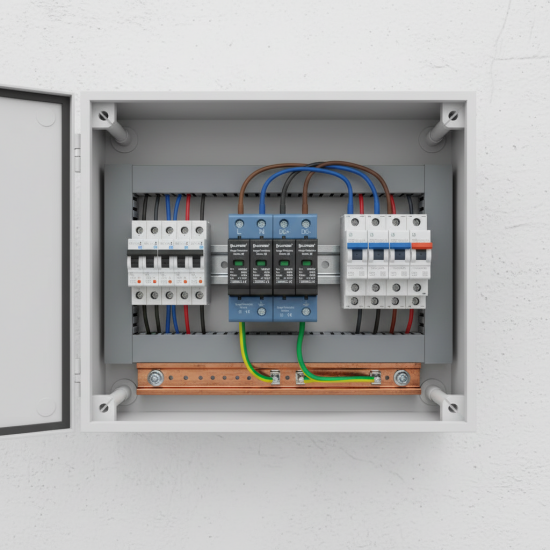

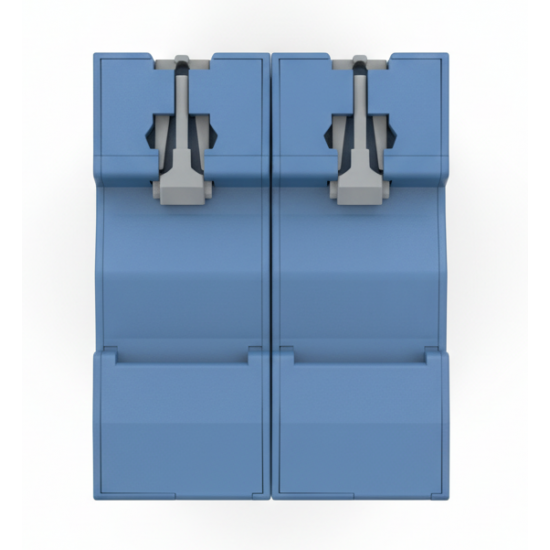

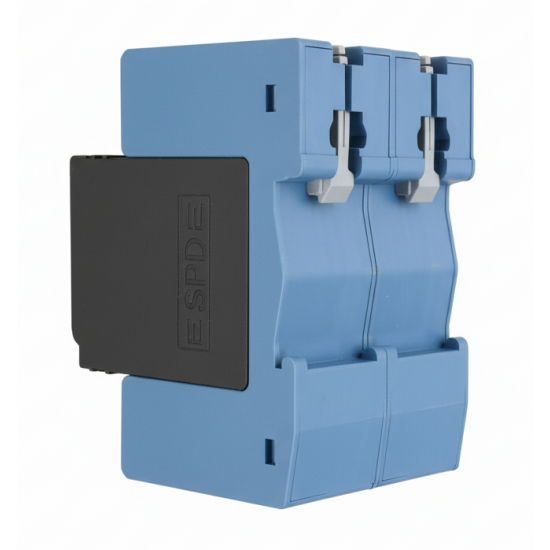

• ???? DIN Rail Mount Design: Compact modular units for easy installation in distribution boards and combiner boxes.
• ???? IEC Certified: Complies with IEC 61643-11 (AC) and IEC 61643-31 (DC) standards for safety and reliability.

Product Description

The Leyden AC & DC Surge Protective Device Combo is a complete protection solution for modern electrical and solar power systems. This combo includes both AC SPD and DC SPD, ensuring protection across the entire power flow—from solar panels to inverter output and main distribution board.

The AC SPD (320VAC) protects household and industrial electrical circuits from transient surges, while the DC SPD (600VDC) safeguards solar panels, inverters, and battery systems from lightning and switching surges.

With a 20kA nominal discharge current and 40kA maximum surge capacity, these devices provide robust and reliable protection. The visual status indicators allow quick inspection, while the DIN rail mounting design ensures easy installation.

Perfect for solar PV systems, homes, commercial buildings, telecom systems, and industrial applications, this combo offers a complete surge protection solution in one package.

Technical Specifications

AC SPD

• Poles: 2 Pole (L-N)
• Uc: 320VAC
• In: 20kA
• Imax: 40kA
• Up: ≤ 1.5–1.8kV
• Standard: IEC 61643-11

DC SPD

• Poles: 2 Pole (DC+ / DC-)
• Rated Voltage (Ue): 600VDC
• In: 20kA
• Imax: 40kA
• Up: ≤ 2.0–2.8kV
• Standard: IEC 61643-31

General

• Brand: Leyden
• Mounting: DIN Rail
• Indicator: Green status window
• Application: Solar PV systems, distribution boards, industrial panels

What Makes This Combo Unique

• All-in-one AC + DC protection solution
• Perfect for solar inverter protection (input + output side)
• Reduces need to buy separate SPDs
• Compact, modular, and cost-effective
• Easy installation with clear labeling

What’s in the Box

• 1 × Leyden 2P AC SPD
• 1 × Leyden 2P DC SPD
